General version support any 5 types of coins ( Canada Quarter, Lonnie,
Toonies, Dime, Nickel,
US Quarter, Dime, Nick, UK Coins (UK2,1, 0.50,0.20,0.10)
EURO(2,1,0.50,0.20,0.10), Mexico Coins, Australia coins, etc. or any coins
or token
diameter = 18m/m - 30m/m, thickness = 1.2m/m -
3.2m/m, some of customers
We now have AK5 optimized and
preset for UK pound coin 2,1,0.50,0.20,0.10, AK5 optimized and pre
programmed model for EURO (2,1,0.50,0.20,0.10), AK5 optimized and pre
programmed model for Canadian Coin (2,1,0.25,0.1,0.05), AK5 optimized and
pre programmed for Australia (2, 1, 0.2), When customer order it, we
automatically ship the related model according to the shipping
address's country which using the above 4 model, please not these special
model are still can be reprogrammed to other countries' coin sets or tokens.

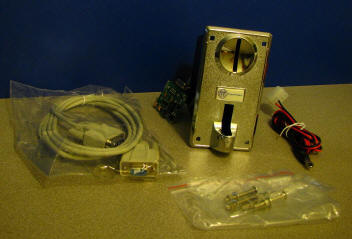

You just mount it in a coin box
or a kiosk cabinet. It can connect to PC directly,
Need to install extra driver AK5-RS232 build in Molex-12 Power cable and RS232 DB9 cable (option to select Switch to Power Adaptor PA-12 US$10)
Please include your phone number in order to get faster and safer
shipping
Ship to Canada & USA. 1 unit US$139.99 plus
airmail (4-8 business days) shipping handle fee US$20, please add extra US$15 shipping fee for each
additional item. Can be paid Canadian Dollar. More than 3 units will
be automatically upgrade to 3-5 business days express shipping with tracking
number. Airmail shipping does not have tracking number and not warranty
shipping time, for fast shipping please send email with phone number and
shipping address for quotation.
Ship to International outside Canada and USA
1 unit US$139.99 plus 5-8 business days
airmail (4-8 business days)
shipping handle fee US$34, please add extra US$28 shipping fee for each
additional item. More than 3 units will be automatically upgrade to
5-6 business days express shipping with tracking number. Airmail
shipping does not have tracking number and not warranty shipping time, for
fast shipping please send email with phone number and shipping address for
quotation.

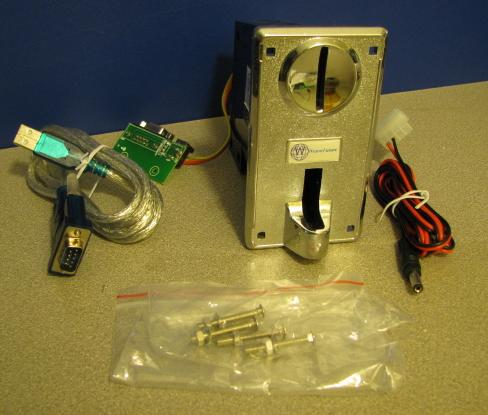

You just mount it in a coin box
or a kiosk cabinet. It can connect to PC USB port directly,
need install driverAK5-USB (include USB adapter
cable, and Molex-12
Ship to International outside Canada and USA
1 unit US$145.99 plus 5-8 business days
airmail shipping handle fee US$34, please add extra US$28 shipping fee for each
additional item. More than 3 units will be automatically upgrade to 5-6
business days express shipping with tracking number. Airmail shipping
does not have tracking number and not warranty shipping time, for fast
shipping please send email with phone number and shipping address for
quotation.
You just mount it in a coin box
or a kiosk cabinet. It can connect to PC USB port directly,
need install driverAK5-USB (include USB adapter
cable, and Switch Power Adaptor (PA-12)
Ship to International outside Canada and USA
1 unit US$149.99 plus 5-8 business days
shipping handle fee US$39, please add extra US$28 shipping fee for each
additional item.
More than 3 units will be automatically upgrade
to 5-6 business days express shipping with tracking number. Airmail shipping
does not have tracking number and not warranty shipping time, for fast
shipping please send email with phone number and shipping address for
quotation.
Following Coin Acceptors are old version and it is obsolete although still on sale.
AK5-Core. In order to save some
shipping cost and discount (you can buy the RS232 DB9 Extension Cable and
Molex-12 cable or Power adapter in you local store instead of buy from us)
Ship to International outside Canada and USA: 1 unit
US$119.99 plus shipping handle fee US$20,please add extra US$15 shipping fee
for each additional item. More than 4 units will be 4-6 business days
AK5-core plus Molex cable
Ship to International outside Canada and USA: 1 unit
US$129.99 plus shipping handle fee US$20,please add extra US$15 shipping fee
for each additional item. More than 4 units will be 4-6 business days
AK5-core plus RS232 DB9
extension cable
Ship to Canada & USA1
unit US$129.99 plus shipping handle fee US$20,please add extra US$15
shipping fee for each additional item.
Ship to International outside Canada and USA
1 unit US$129.99 plus shipping handle fee
US$34,please add extra US$28 shipping fee for each additional item. More
than 4 units will be 4-6 business days
Molex-12,
When the kiosk (computer) is off, the coin acceptor is also off. the cable
is about 1.5M long. Computer Hard Driver 4 pin Molex cable to 12VDC adapter
for above system US$10
Highest quality Switch Power
adaptor (PA-12) output 12VDC, 0.5A, input 110VAC-240VAC. Automatic adjust
power and switch power protecting
Ship to Canada & USA1
unit US$17 plus (4-6 business days) shipping handle fee US$10 up to 4
units, please add extra US$4 shipping fee for each additional item
Ship to International outside Canada and USA
1 unit US$17 plus (6-10 business days)
shipping handle fee US$15, please add extra US$5 shipping fee
for each additional item
Universal
LCD monitor mounting kits (LCD-KITS), support LCD monitor most 15", 17",
19", 20" and up
Ship to Canada & USA 1 unit LCD-KITS US$12 plus
shipping handle fee US$15, please add extra US$9 shipping fee for each
additional item.
Ship to International outside Canada and USA
1 unit LCD-KITS US$12 plus shipping handle fee
US$20. please add extra US$15 shipping fee for each additional item.
USB-RS232 Converter kits for
computer only have USB port and does not have RS232 serial com port,
need install driver
USB-RS232 converter upgrade kits for above system
US$30
All products have 1 year warrant for repairing or
exchange, no refund.
Weavefuture AK5 Multiple Coin Acceptor is
built for Internet Cafe and Internet Kiosk. It has patent pending
solution.
The
Weavefuture Coin Acceptor AK5 include:
Include
Weavefuture Coin Acceptor AK5
include
Weavefuture Coin Acceptor AK5 Service Driver working with Windows
2000/XP/Vista (Windows Vista need to disable UAC)
include
Weavefuture Internet Cafe software, tested on Windows 2000/XP/Vista
(Windows Vista need to disable UAC)
integrated with Weavefuture Public
Internet Kiosk Browser 3.2, (You
can also download stand alone version for non coin operated) it is wrapper for Internet Explore 6.0
above. (internet Explore 6.0 above has to be installed, you can install,
update any plug-in in your Internet Explore 6.0 above)
1. This is Test Alpha Version for Windows
Vista. Only minimum support, it may have bugs for
Windows Vista (Windows Vista need to disable
UAC). Almost
same as 3.7.5 for other windows version.
2. Add Font and color design for Splash
windows. fixes few bugs
Which is brand new and
use fully libraries and API from Internet Explore 6.x and above.
You need to setup valid
Username, Password and Domain in Start->Administrator->Auto Logon in
order to run
Weavefuture
Internet Kiosk Browsers 3.2 without bugs.
This version fixed the "@"
input and other bugs
2. add optional "Reset Timer" button. 3. The Timer will extend its width to remind user insert more money 4. It can change how many seconds the timer start to sound alarm or
extends its width to remind customer insert more money, default is 30
seconds now. 5 reset timer location when new session started
What is new about version 3.7
1. Add charge printing by
page feature (you need to setup your default Printer since this version
or fake printer if you do not have, otherwise there will be bugs to
prevent timer to function)
What is new about version 3.6
1. optional add picture (JPG, BMP, GIF, etc)
in the central area.
2. optional add Flash in the central
area. (need install Shock Wave Flash Player 9.0 or up)
3. optional add Video in the central
area (need install Windows Media Player 9.0 or up)
Download
Weavefuture Internet Cafe Game Kiosk Timer Production version 2.3.1
(The software has 2 mode, Test mode and Production Mode. After
installed the software first time, it is in default Test Mode. When the
software is in Production Mode, your PC will be locked forever and you
may have to reinstall the OS if you did not buy the WS, AK5, or
Weavefuture Kiosk Board. That is the different between the Test Mode and
Production mode. When your purchase the WS, AK5, or Weavefuture Kiosk
Board then you can unlock your PC by drop the coins, insert bill)
features: minimum
start time, change color, log files for coin drop information. sent log
files by mail functions( this need to setup the SMTP server. you can use
you own server or using our server with your own account by US$2.00 per
month.)
include Free Weavefuture
Internet Kiosk Browser 2.0 tested on Windows 2000/XP(US$25
value)
include RS232 Cable (can be used only for AK5)
You just
connect it to PC and install the software as administrator, run it as
limited user, and then you turn your PC into self-service Internet Cafe
Machine.
Output 12VDC, 500ma Power Adaptor needed (
you can bought from your local store) Convert
your PC into Coin Operated Internet Kiosk.
Convert your PC into Coin Operated Game Kiosk. ( other game software
needed)
Convert your PC into Coin Operated jukebox Kiosk. ( other jukebox
software needed) Convert your PC into Coin Operated Adult
Video Kiosk. (other video needed)
Convert your PC into Coin Operated Software Applications Kiosk. (other
Software Applications needed)
Here is cutting holes for mounting this coin
acceptor. it can be mounted under a counter top for a bar. Your own
internet kiosk, game kiosk cabinet, or coin box.
It designed to set 5
different output value groups at the same time; every output value set can
program 10 types coins.
Different output values mean
number of output pulse.
lSetup coins by
training
Programming the type of coin by training, when AK5 is in programming mode it
memorize the data of material, thickness and diameter of the coins. When AK5
is in working mode it will recognize the coins by a complicated calculation
and process these memorize data.
lAdjustable the
recognized accuracy
There is a switch in the AK5
can adjust the accurate degree of recognizing sensitive.
lAlarm guard system.
The AK5 has software guard
system; this guard system has alarm, which prevents
opportunistic behaviors.
lApply to coins
diameter = 18m/m - 29m/m
lApply to coins
thickness = 1.2m/m - 3.0m/m
lWork voltage = DC12V
20%
lCurrent in 50MA in
power saving mode, wake up mode 500MA
lTemperature =-20C~50C
The coin acceptor and note validator/bill acceptor accept allmost all country's
currency.
North American: US, Canada, Mexico, Bahamas, Brazil, etc.
European: Belgium, German, France, Spain, UK, Island, Czech Republic,
England, Iceland, Italy, Norway, etc.
Asia: Thailand, Singapore, Australia, China, Hong Kong, Philippines,
Turkey, etc. and many more.
